Casttec Gas Arch Inset Tray 18" Fireplace Opening - CATC00MN

New Clearance -

Product Information

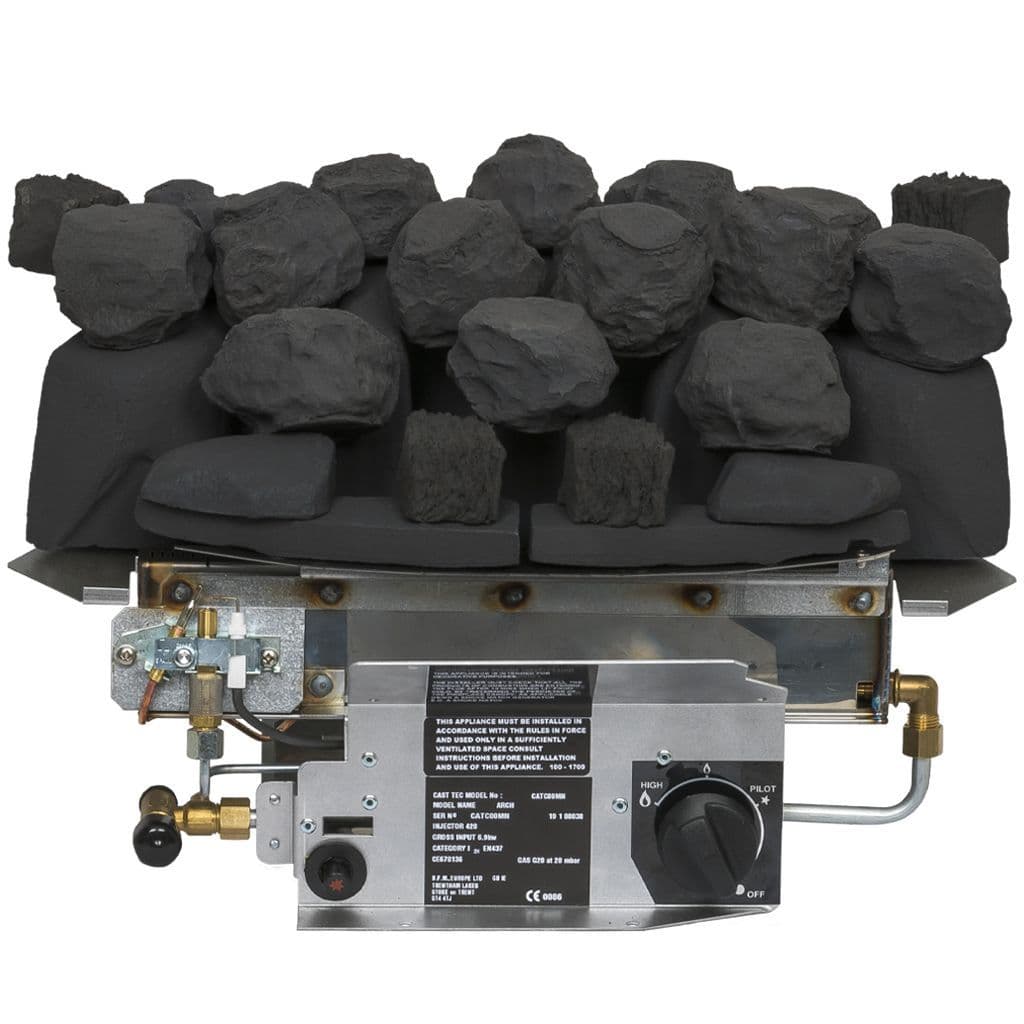

The Arch Inset Gas Fire Burner is a decorative gas coal effect fire that fits inside a standard arched cast-iron insert with an 18" fireplace opening.

The Arch Inset Gas Burner is around 25% efficient and while it looks realistic as a coal effect fire the heat output of just under 2kW means that it is mainly decorative and not suitable for primary heating purposes.

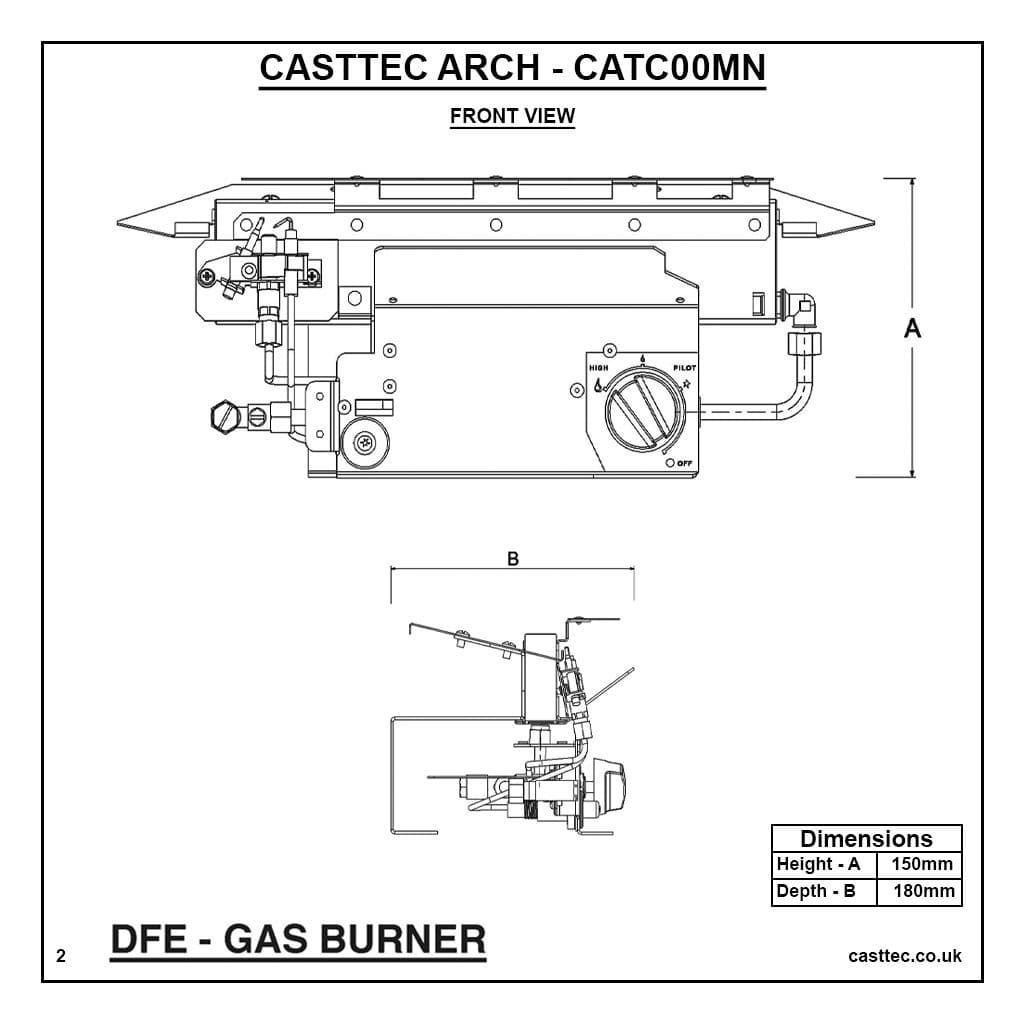

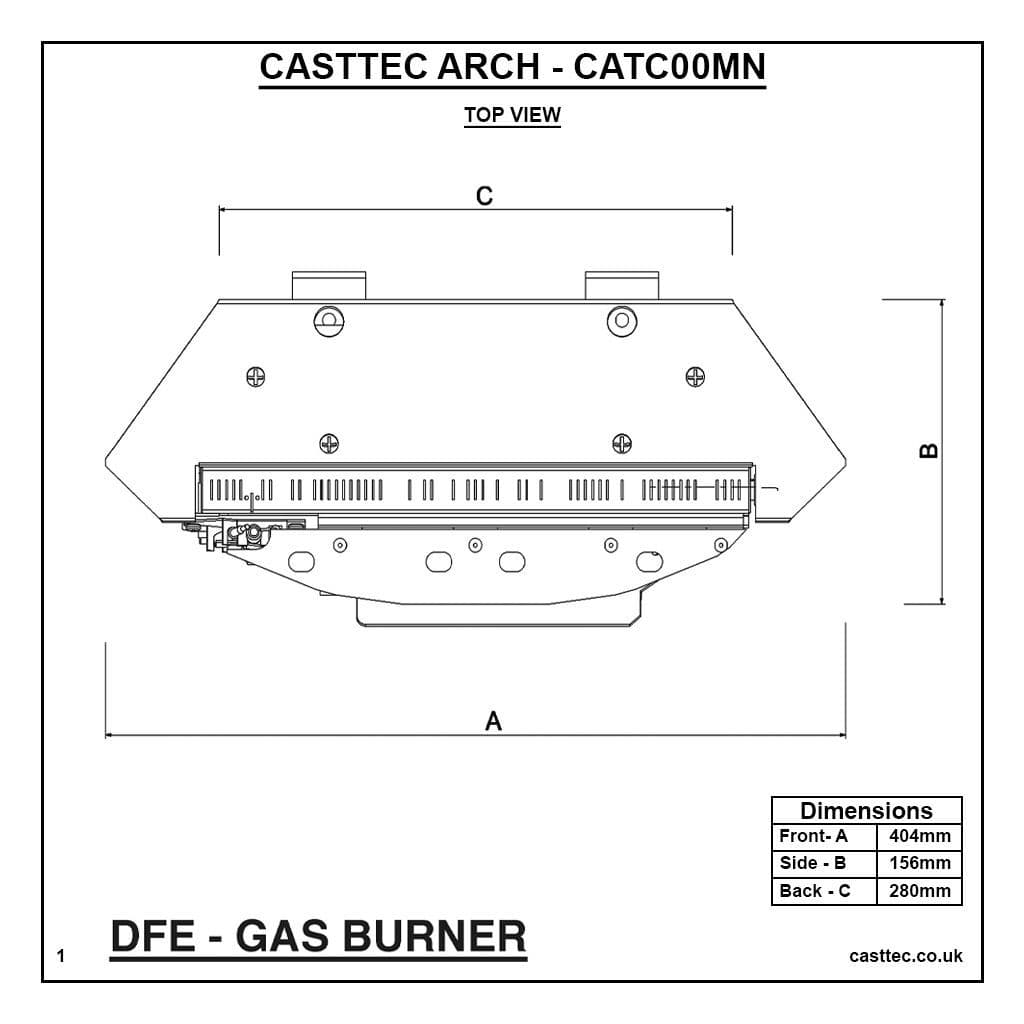

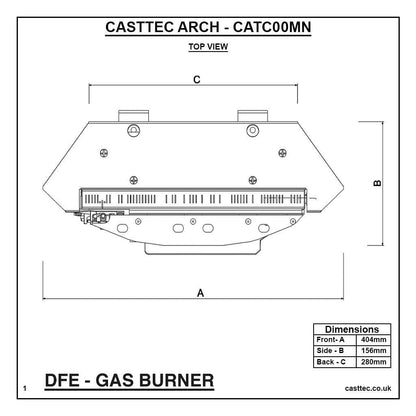

The dimensions of the Arch Inset Burner are shown in the diagram below. This needs to fit inside of the fireplace opening with a bit space to spare all around.

Special sizes of gas burner are available upon request, please use our 'contact us' page with the relevant information.

Gas appliances should to be fitted by registered Gas Safe engineers.

Serial Number: CATC00MN

Fire Colour: Black
Fire Type: Tray
Heat Output: Up to 2kW
Flue: Class 1 & Class 2
Control Type: Manual
Fuel Bed: Coal
Compatibility: Compatible with marble & stone Fireplaces
Fitting: This gas fire must be installed by a Gas Safe Registered fitter

Instructions here

Key Measurements
