Gallery Classic 5 Compact Eco Wood Burning / Multifuel Ecodesign Stove 5kW

Only 10 left!
NEW
Regular price
£769.00
Sale price
£769.00
Regular price
Sold out
Unit price
per

Condition: New

Product Information

The newest addition to the gallery range of stoves is the Gallery Classic 5 Compact Ecodesign Stove. This stove is suitable to burn wood or smokeless coal in smoke controlled zones and meets all the requirements of Ecodesign 2022 lower emissions rules. The Classic 5 Compact is a small stove but with an impressive large viewing window. As with all the Gallery range of stoves, this is a great stove at a great price.

  • Cast Iron Construction
  • Suitable for use in smoke control zones
  • Ecodesign compliant for reduced emissions

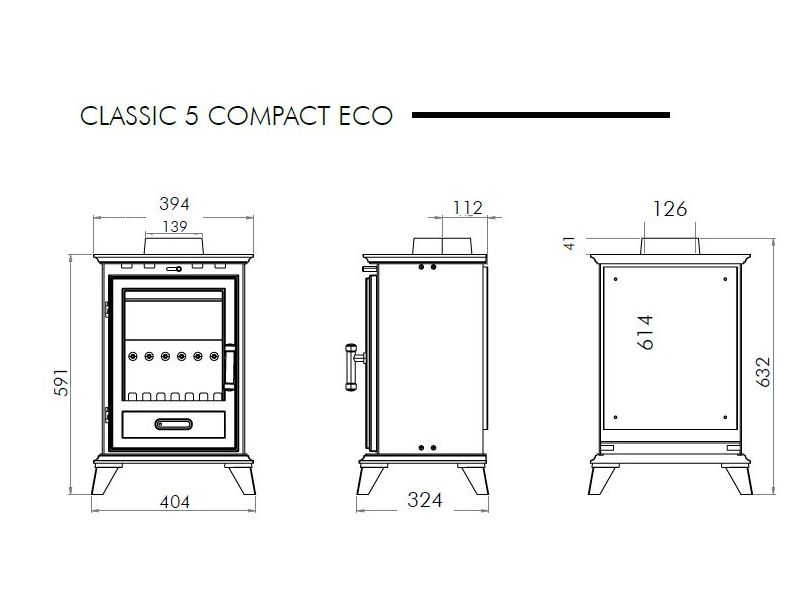

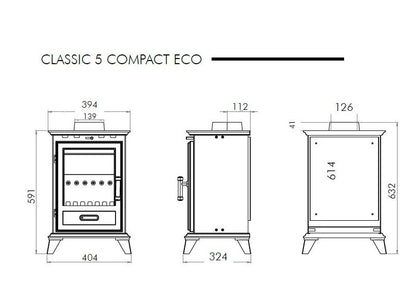

Overall Height (A) 591mm
Overall Width (B) 404mm
Overall Depth (C) 324mm
Rear to Centre of Top Flue (F) 112mm
Width to Centre of Top Flue (E) 202mm
Height to Centre of Rear Flue (D) 480mm



Guarantee 10 Years
Efficiency 82.5%
Energy Rating A Plus
DEFRA Approved Yes
Airwash System Yes
Construction Cast Iron
Flue Outlet Top & Rear (Interchangeable)
Flue Size 5-inch (125mm)
Fuel Type Wood or Multi Fuel
Grate Type Multifuel Grate (to burn Wood & Coal)
Log Length 225mm
Heat Output 5.0kW
Suitable For 12mm Hearth No
External Air Compatible No
More Colours No
Distance to Combustibles - Sides 600mm
Distance to Combustibles - Rear 500mm
Brand The Gallery Collection
Stove Window Size (Width mm x Height mm) 230mm x 200mm
Sweep Flue through Stove? Yes





316 10 M FLUE PACKAGE INCLUDES;

CLASSIC 5 ECO STOVE
10 Meters 316 GRADE 5″ FLUE
APPLIANCE ADAPTOR
Stove register Plate
Terracotta Cowl
1M 5″ STRAIGHT BLACK FLUE PIPE
Date Plate
Monoxide Detector

FLUE LINERS: 316

Flexible liners are formed using two layers of stainless steel

316 grade. Suitable for burning dried seasoned wood, gas, oil and low sulphur coal .

Multi-fuel 316 grade liner is adequate for most people's stove needs

NOTE: DO NOT book any builders or installation engineers until you have received all goods and have checked them. Delivery times cant take longer than planned or items can go out of stock in busy periods September to March. Please plan ahead.
